iFlight XING 2306 Motor (Unibell) - 2450KV

iFlight XING provides the most incredible power and thrust in the lightest weight. iFlight continues the tradition of making the best and most suitable products to offer different size and KV value to meet different pilots’ needs. It means that the iFlight XING series motor can be pushed to the limit. The sturdy structure and high-quality materials make iFlight XING perform like a beast.

There's a non-slip design on the contact surface of the iFlight XING motor and propellers to increase the friction and to improve durability; Multi-heat dissipation hole design helps to pull heat away continuously.

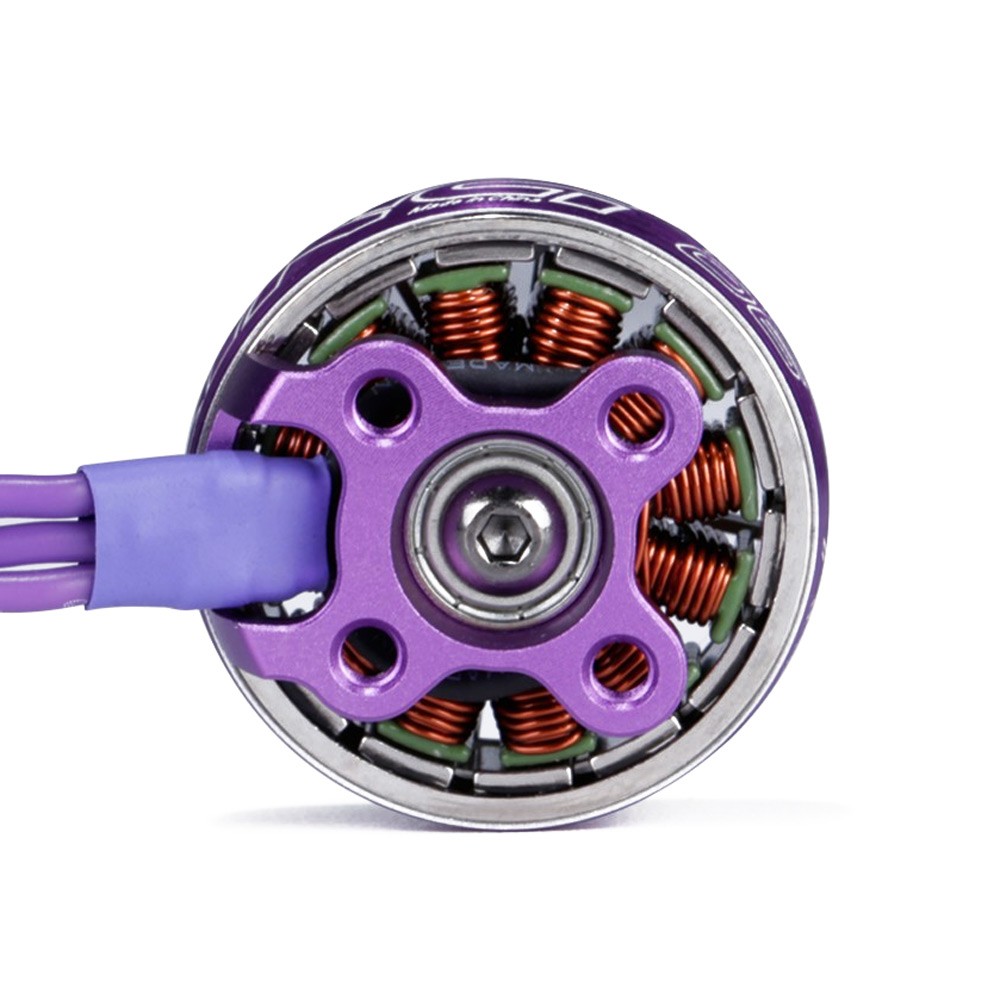

The standard M3 16mm*16mm mounting pattern at the bottom adapts to all frames on market. A motor cable length of 160mm can meet different requirements whether connecting single or 4 in 1 ESCs. Each motor has been dynamically balanced, and all of them have passed the highest standard iFlight manufacturing and assembling procedure.

VIDEO: I-Flight Xing 2306 2450kv motors

Specifications

• Wire: 220℃ Pacific Heat-Resistant Copper Wire
• Magnets: N52H High-temperature magnets
• Core: Japanese Kawasaki 1200 Iron Core
• Material: 7075 aluminum Bell and Base
• Motor Dimensions: 29.5x18.7mm
• Max Continuous Power: 748.8
• Internal Resistance: 47.3
• Stator Diameter: 23mm
• Configuration: 12N14P
• Cable Length: 160mm
• Max Current: 44.57A
• Shaft Diameter: 4mm
• Stator Length: 6mm
• Idle Current: <2.0
• Weight:  33.4g
• Type: Unibell
• Color: Purple
• Stator: 2306
• KV: 2450KV
• Cells: 2-4S

Includes

• 1x iFlight XING 2306 Motor (Unibell) - 2450KV
• 1x Set of Screws
• 1x Prop Nut
