Описание

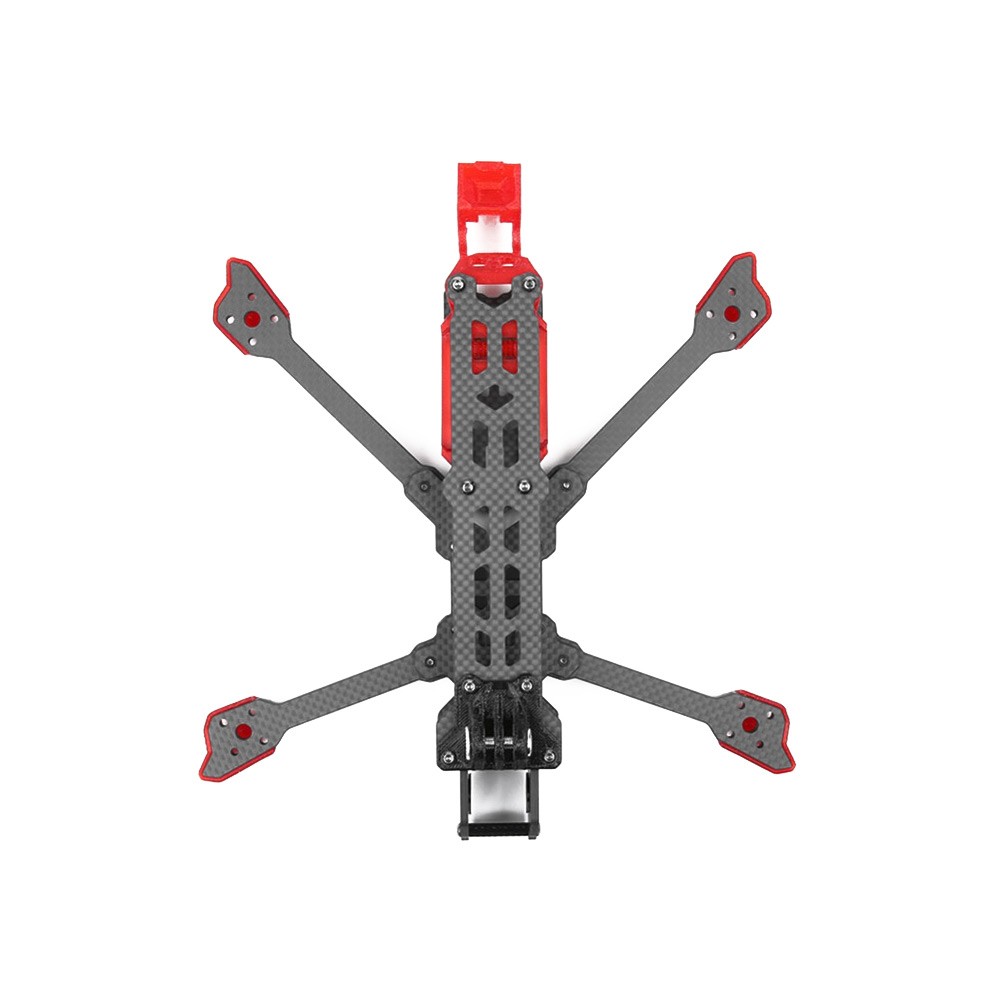

The iFlight Chimera5 Frame is a 5" DeadCat style freestyle airframe with 3K Carbon Fiber. The deadcat configuration provides a No-Prop view. This frame is ideal for DJI units, with and stack configuration that is centered and fits both 30.5x30.5 and 20x20 configurations.
Features
- The 5-inch version of Chimera 7 is more lightweight
- 360° TPU protection and Antenna mounts
- Compatible with Vista Air Unit
-
Full 3K Carbon Fiber airframe
Specifications
- Mounting Patterns: 25.5x25.5mm/20x20mm
- Main body dimension: 135x173mm
- FPV Cam: 19mm Micro / 20mm
- Middle Plate thickness: 2.5mm
- Bottom to top distance: 28mm
- Bottom plate thickness: 2mm
- Top plate thickness: 2mm
- Arm thickness: 4mm
- Wheelbase: 219mm
- TPU Camera plate
- Motor mounting pattern: 12x12
Includes
- 1x Horizontal 900 Antenna+ GPS TPU
- 1x FPV Air Unit Coaxial CableTPU
- 1x Antenna (Analog/RX) TPU
- 1x Vertical 900 Antenna TPU
- 1x GoPro Mount Seat TPU
- 4x Motor Wire Protector
- 1x GPS Carbon Mount
- 1x DJI Air Unit Bracket
- 1x Antenna (HD) TPU
- 1x GPS Mount TPU
- 1x Arm Guard TPU
- 1x Lens Protector
- 2x Antenna Tube
- 1x Counter Plate
- 1x Sticker Sheet
- 1x Hardware Kit
- 2x Battery Strap
- 2x Antenna Cap
- 1x Bottom Plate
- 1x Spacer TPU
- 1x Cam Mount
- 1x Battery Pad
- 2x Front Arm
- 2x SMA Grip
- 2x Rear Arm
- 1x Top Plate
